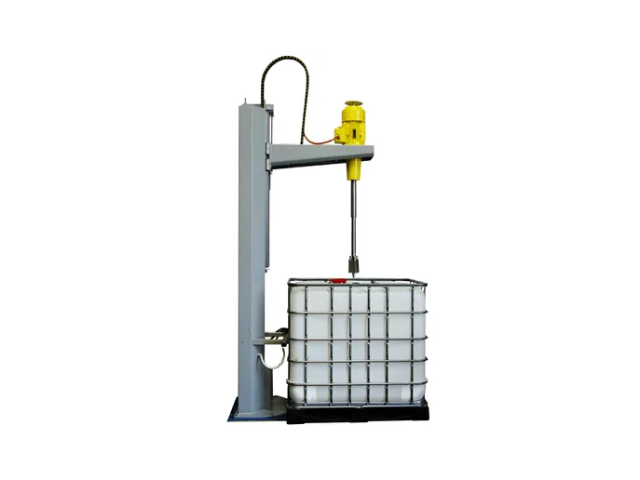

Dispermill M-series는 실험실 공정을 생산 규모로 확장하기 위한 중·대형 디졸버 장비
75 L부터 최대 1000 L까지의 배치를 처리할 수 있도록 설계된 프로덕션 스케일 디졸버

강력한 모터와 직접 구동(Direct Drive) 구조를 적용하여
고점도 소재에서도 안정적인 분산 성능을 제공
유압 리프팅 시스템을 통해 전체 믹싱 유닛의 상하 이동이 용이

일반 산업 환경용 M-series와
폭발 위험 환경에 대응하는 ATEX 방폭형 MX-series로 구성되어
공정 환경에 맞춘 장비 선택 가능

[일반형]

항목	M400	M550	M750	M1100	M1500
Equipment type	Production dissolver	Production dissolver	Production dissolver	Production dissolver	Production dissolver
Motor power	4.0 kW / 5.5 HP	5.5 kW / 7.5 HP	7.5 kW / 10 HP	11.0 kW / 15 HP	15.0 kW / 20 HP
Speed range	200 – 1800 RPM	200 – 1800 RPM	200 – 1800 RPM	200 – 1800 RPM	200 – 1800 RPM
Torque	25 Nm	35 Nm	48 Nm	70 Nm	95 Nm
Batch volume range	75 – 1000 L	75 – 1000 L	75 – 1000 L	75 – 1000 L	75 – 1000 L

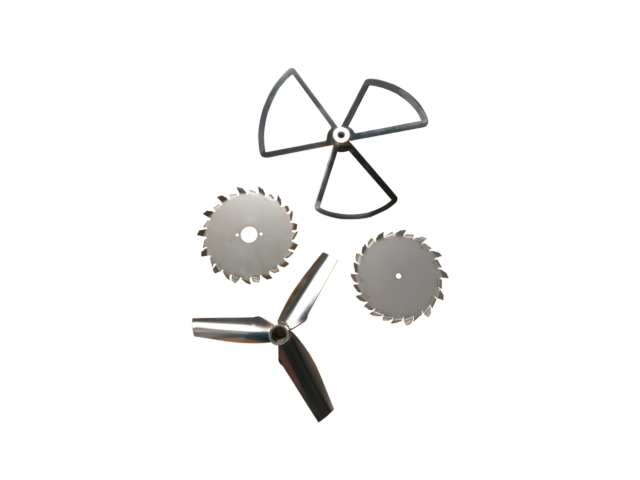

Dispersing disc diameter	200 mm	225 mm	250 mm	275 mm	325 mm
Lifting system	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Clamping system	Ratchet belt	Ratchet belt	Ratchet belt	Ratchet belt	Ratchet belt
Power supply	400 V ±10%, 50/60 Hz	400 V ±10%, 50/60 Hz	400 V ±10%, 50/60 Hz	400 V ±10%, 50/60 Hz	400 V ±10%, 50/60 Hz
Thermal protection	PTC sensors	PTC sensors	PTC sensors	PTC sensors	PTC sensors
Electrical connection	5 m cable + separate cabinet	5 m cable + separate cabinet	5 m cable + separate cabinet	5 m cable + separate cabinet	5 m cable + separate cabinet
Dimensions (W × D × H)	700 × 1511 × 3034 / 3396 mm (all models)	700 × 1511 × 3034 / 3396 mm (all models)	700 × 1511 × 3034 / 3396 mm (all models)	700 × 1511 × 3034 / 3396 mm (all models)	700 × 1511 × 3034 / 3396 mm (all models)
Safety standard	CE – Directive 2006/42/EC (all models)	CE – Directive 2006/42/EC (all models)	CE – Directive 2006/42/EC (all models)	CE – Directive 2006/42/EC (all models)	CE – Directive 2006/42/EC (all models)
Electrical cabinet dimensions	500 × 400 × 210 mm (outside ATEX zone)	500 × 400 × 210 mm (outside ATEX zone)	500 × 400 × 210 mm (outside ATEX zone)	500 × 400 × 210 mm (outside ATEX zone)	500 × 400 × 210 mm (outside ATEX zone)
Safety compliance	CE – Directive 2006/42/EC	CE – Directive 2006/42/EC	CE – Directive 2006/42/EC	CE – Directive 2006/42/EC	CE – Directive 2006/42/EC

[방폭형]

Item	MX400 (ATEX)	MX550 (ATEX)	MX750 (ATEX)
장비 유형	Explosion-proof dissolver	Explosion-proof dissolver	Explosion-proof dissolver
모터 출력	4.0 kW / 5.5 HP	5.5 kW / 7.5 HP	7.5 kW / 10 HP
회전 속도 범위	200 – 1800 RPM	200 – 1800 RPM	200 – 1800 RPM
토크	25 Nm	35 Nm	48 Nm
배치 용량 범위	75 – 1000 L	75 – 1000 L	75 – 1000 L
분산 디스크 직경	200 mm	225 mm	250 mm
리프팅 시스템	Hydraulic	Hydraulic	Hydraulic
클램핑 시스템	Ratchet belt	Ratchet belt	Ratchet belt
전원 사양	400 V ±10%, 50/60 Hz	400 V ±10%, 50/60 Hz	400 V ±10%, 50/60 Hz
과열 보호	PTC sensors	PTC sensors	PTC sensors
전기 연결 방식	5 m cable + separate cabinet (outside ATEX)	5 m cable + separate cabinet (outside ATEX)	5 m cable + separate cabinet (outside ATEX)
방폭 인증	Yes	Yes	Yes
외형 치수 (W × D × H)	700 × 1511 × 3034 / 3396 mm (all models)	700 × 1511 × 3034 / 3396 mm (all models)	700 × 1511 × 3034 / 3396 mm (all models)
안전 규격	CE – Directive 2006/42/EC (all models)	CE – Directive 2006/42/EC (all models)	CE – Directive 2006/42/EC (all models)
전기 캐비닛 치수	500 × 400 × 210 mm (outside ATEX zone)	500 × 400 × 210 mm (outside ATEX zone)	500 × 400 × 210 mm (outside ATEX zone)
안전 적합성	CE – Directive 2006/42/EC	CE – Directive 2006/42/EC	CE – Directive 2006/42/EC
